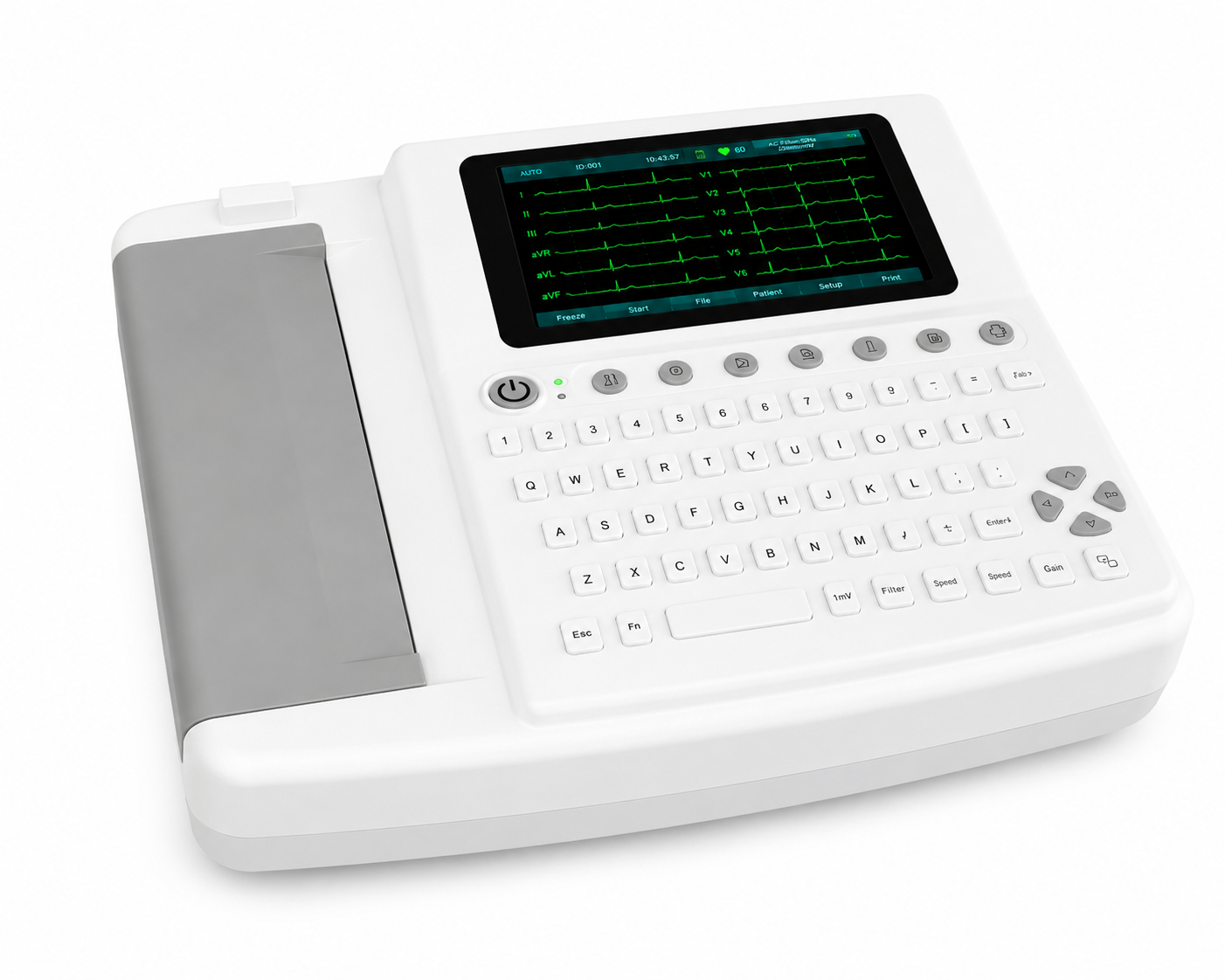

12 Channel ECG Machine

Designed for advanced cardiac diagnostics and efficient workflow management, this 12 Channel ECG Machine delivers accurate and simultaneous 12-lead ECG acquisition with high-resolution waveform display and thermal printing. Its compact design, built-in keyboard, and intelligent interpretation system make it ideal for hospitals, clinics, emergency units, cardiology departments, and specialist healthcare facilities.

The system supports fast patient data entry, automatic ECG analysis, and reliable long-term operation with a built-in rechargeable battery, making it suitable for both stationary and mobile medical environments.

Key Features

• Simultaneous 12-lead ECG acquisition and display
• 7-inch high-resolution colour touch screen
• Full alphanumeric keyboard for efficient operation
• Automatic ECG measurement and interpretation
• Internal memory storage for up to 1000 cases
• USB data transfer and ECG report export
• Built-in rechargeable lithium battery
• High-quality thermal printing system
• Compact and user-friendly design

Technical Specifications

ECG Performance

• Lead System: Standard 12 Leads
• Acquisition Mode: Simultaneous 12-lead acquisition
• Sampling Rate: 1000Hz
• A/D Converter: 24-bit
• Frequency Response: 0.05Hz – 160Hz (-3dB)

Recording Modes

• Manual Mode
• Automatic Mode
• Rhythm Recording Mode

Filters

• AC Filter: 50Hz / 60Hz
• EMG Filter: 25Hz / 35Hz / 45Hz / 75Hz / 100Hz / 150Hz
• DFT Filter: 0.05Hz / 0.5Hz

Sensitivity & Printing

• Sensitivity:
  • 2.5 mm/mV
  • 5 mm/mV
  • 10 mm/mV
  • 20 mm/mV
• Paper Speed:
  • 12.5 mm/s
  • 25 mm/s
  • 50 mm/s
• Recording Paper:
  • 210mm × 30m thermal paper
• Printing Method:
  • Thermal printing system

Electrical & Safety

• Input Impedance: ≥50MΩ
• CMRR: ≥100dB
• Input Circuit Current: ≤0.05μA
• Patient Leak Current: <10μA
• Power Supply:
  • AC 100–240V, 50/60Hz
  • Built-in lithium battery

Standard Accessories Included

• Main ECG Unit
• Patient Cable
• Limb Electrodes
• Chest Electrodes
• Power Cable
• Thermal Recording Paper
• Paper Axis
• Power Cord

Applications

• Hospitals
• Cardiology Departments
• Emergency Rooms
• Medical Clinics
• Doctors’ Practices
• Occupational Health Screening
• Specialist Diagnostic Centres
