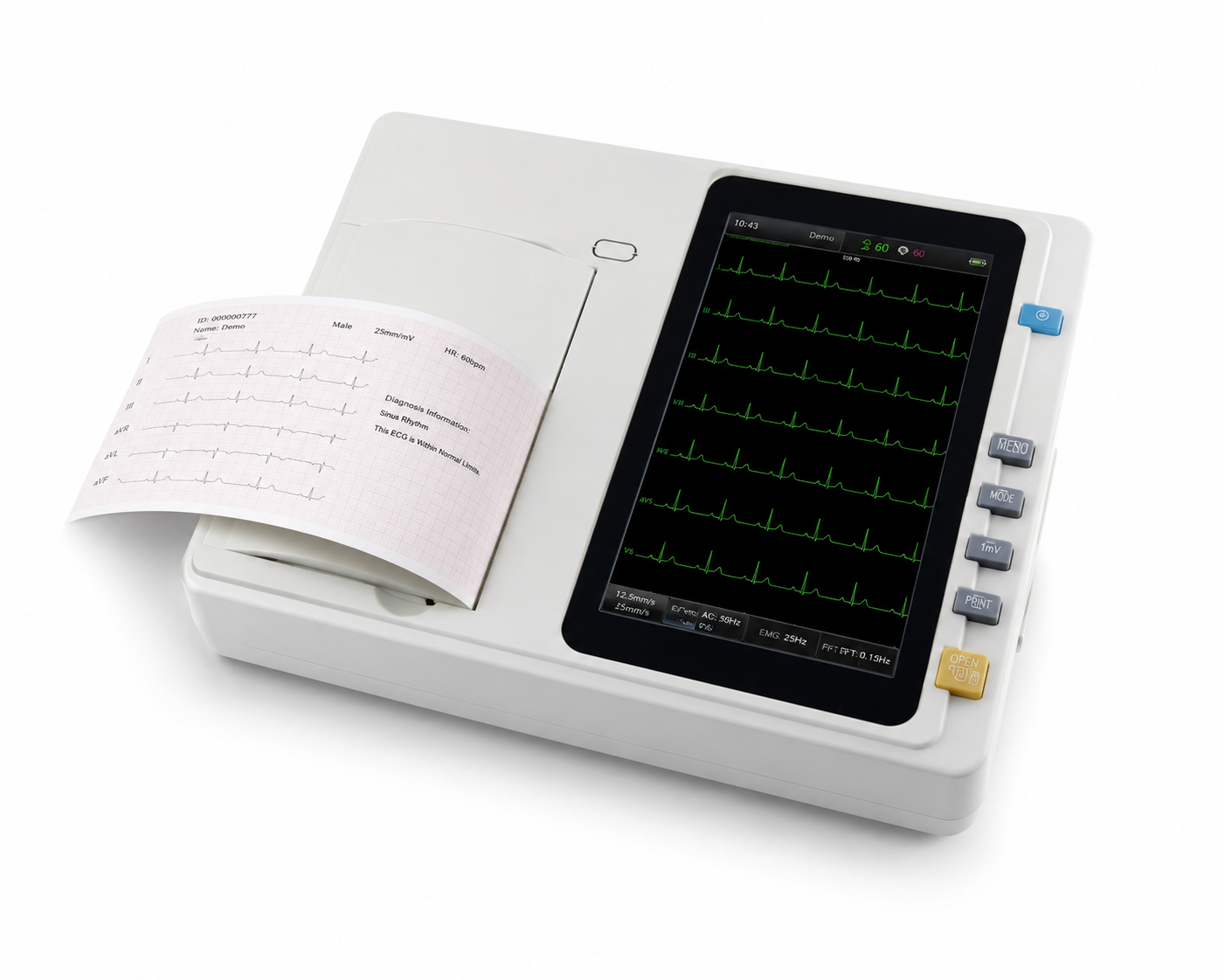

6 Channel ECG Machine

6 Channel ECG Machine – Product Specifications

Designed for accurate and reliable cardiac monitoring, this 6 Channel ECG Machine offers simultaneous 12-lead acquisition with high-resolution waveform display and thermal printing. Its compact, lightweight design makes it ideal for hospitals, clinics, emergency rooms, doctors’ rooms, and healthcare facilities.

Key Features

• 7-inch high-resolution colour touch screen
• Simultaneous 12-lead ECG acquisition and display
• Automatic ECG measurement and interpretation
• Advanced digital filtering to reduce interference and baseline drift
• Compact and lightweight design
• Built-in rechargeable lithium-ion battery
• USB flash drive and Micro SD card support
• Software upgrade capability via USB/SD card
• High-quality thermal printing system

Technical Specifications

• Lead System: Standard 12 Leads
• Acquisition Mode: Simultaneous 12-lead acquisition
• Recording Modes:
  • Automatic
  • Manual
  • Rhythm recording
• Sensitivity:
  • 2.5 mm/mV
  • 5 mm/mV
  • 10 mm/mV
  • 20 mm/mV
• Paper Speed:
  • 12.5 mm/s
  • 25 mm/s
  • 50 mm/s
• Frequency Response: 0.05Hz – 150Hz
• Input Impedance: ≥50MΩ
• CMRR: >100dB
• Sampling Rate: 1000 samples/channel
• Display: 7-inch colour touchscreen
• Recording Paper: 80mm × 20m thermal paper roll
• Printing System: Thermal printing
• Power Supply:
  • AC 100–240V, 50/60Hz
  • Built-in rechargeable lithium battery
• Safety Standard: IEC I/CF

Standard Accessories Included

• Main ECG Unit
• Patient Cable
• Limb Electrodes
• Chest Electrodes
• Power Cable
• Thermal Recording Paper
• Paper Axis
• Power Cord

Applications

• Hospitals
• Medical Clinics
• Doctors’ Rooms
• Emergency Medical Services
• Cardiology Departments
• Occupational Health Screening
