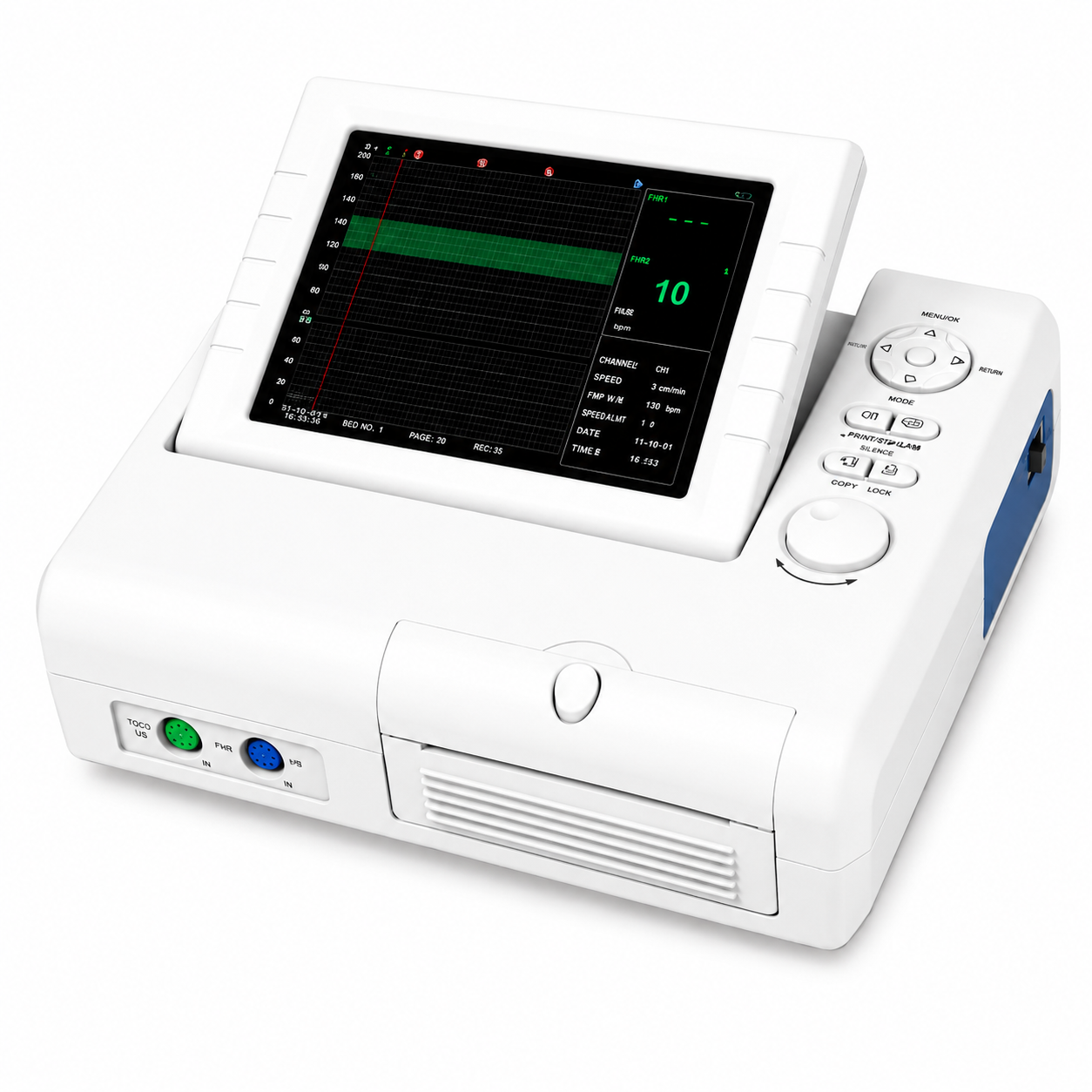

CTG Machine - 8 Inch

The CTG Fetal Monitor is a reliable fetal monitoring system designed for continuous monitoring of fetal heart rate (FHR), uterine contractions (TOCO), and fetal movement during pregnancy and labour. Ideal for hospitals, maternity wards, clinics, and obstetric practices, it delivers accurate real-time monitoring to support clinical decision-making.

Featuring an 8-inch colour LCD display, built-in high-resolution thermal printer, and 24-hour monitoring capability, the CMS800G provides clear waveform display, data storage, playback, and printing. Audible and visual alarms enhance patient safety, while its compact design and intuitive operation make it suitable for everyday clinical use.

Features

• 8-inch colour LCD display
• Real-time FHR and TOCO monitoring
• Automatic and manual fetal movement recording
• Built-in thermal printer
• 24-hour continuous monitoring
• Data storage, playback and printing
• Audible and visual alarm system
• Rotatable display (up to 60°)
• USB and SD card storage support
• Optional twin fetal monitoring
• Compact, lightweight design

Specifications

• Model: 800G
• Display: 8" Colour LCD
• FHR Range: 50–240 BPM
• FHR Accuracy: ±2 BPM
• FHR Resolution: 1 BPM
• TOCO Range: 0–100%
• TOCO Resolution: 1%
• Ultrasound Frequency: 1.0 MHz
• Printer: Built-in Thermal Printer
• Paper: 112 mm Z-fold
• Network: RJ45
• Storage: USB Flash Drive & SD Card
• Dimensions: 320 × 260 × 90.5 mm
• Weight: Approx. 3 kg
• Ingress Protection: Main Unit IPX0 | Probe IP22

Accessories Included

• Ultrasound Transducer
• TOCO Transducer
• Remote Marker
• Abdominal Belts
• Recording Paper
• Power Cord
• User Manual
