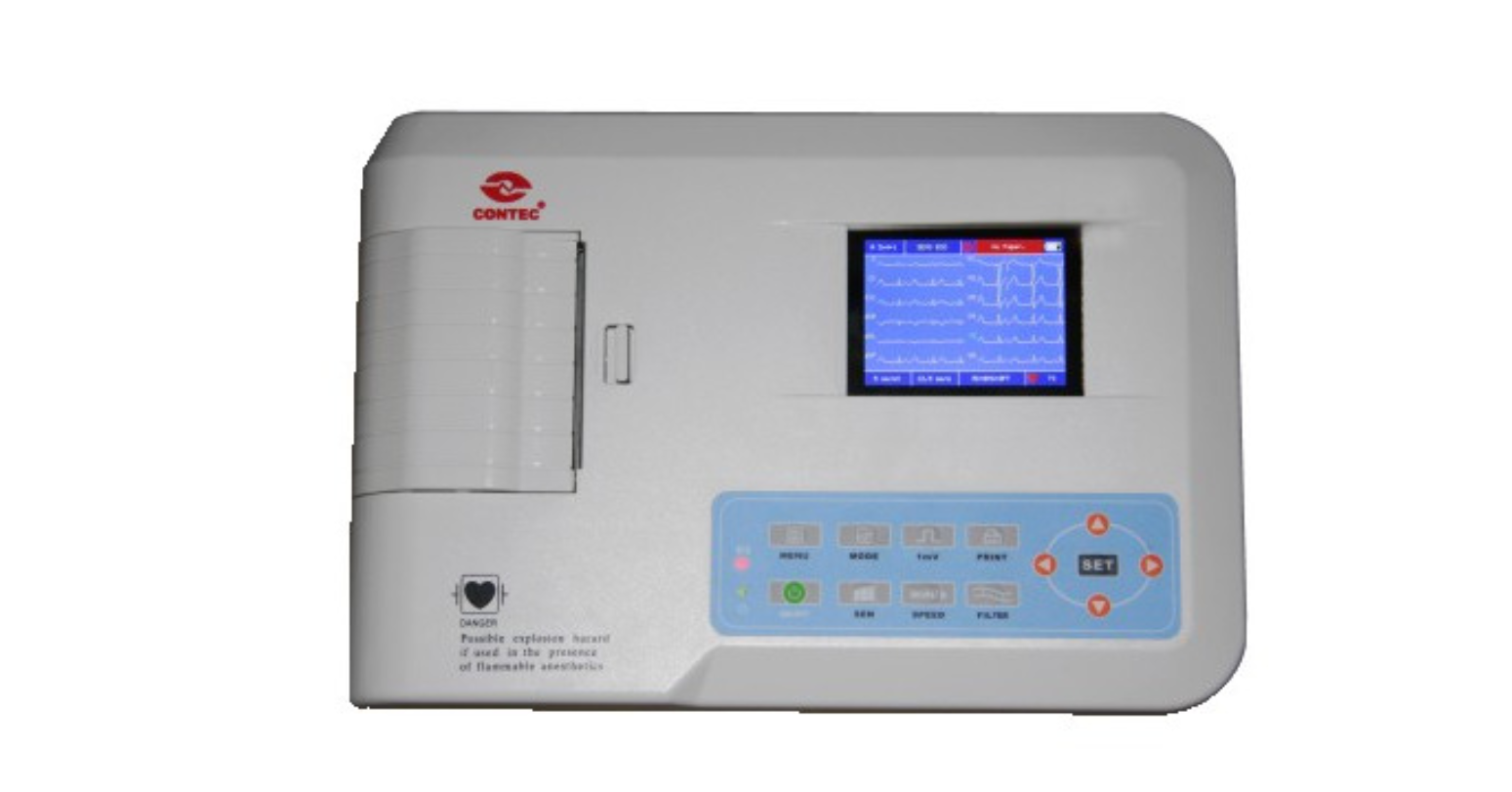

ECG 3 CHANNEL - CONTEC - 300G
ECG 3 CHANNEL - CONTEC - 300G
Couldn't load pickup availability
SPECIFICATIONS:
High resolution thermal printing system, high precision
12 leads collection in phase as well as 3 leads printing in phase
Digital design and filter, baseline auto-adjustable
LCD displays operation menu
Power Supply: AC/DC, built-in rechargeable lithium battery
Automatic measurement, analysis and diagnosis with high speed
Elegant and compact outlook, with inner handhold.
Supplied with Disposable electrodes
|
MODEL: |
ECG 300G |
|
ECG Input Circuit |
Floating; protection against defibrillator effect. |
|
Lead |
Standard 12 leads |
|
Display |
3.5” TFT screen |
|
Patient Current Leakage |
10μA |
|
Sampling Rate |
1000Hz |
|
A/D conversion |
12 bit |
|
Frequency Response |
0.05Hz~150Hz (-3dB + 0.4dB) |
|
Time constant: |
>3.2 seconds |
|
CMRR |
>60dB >100dB (Add Filter) |
|
Enduring polarization voltage |
±500mV |
|
Noise Level |
<15μVp-p |
|
Measurement parameters |
EMG Interference Filter - 25Hz/35Hz (-3dB) |
|
AC filter |
50Hz/60Hz (≥20dB) |
|
Recording way |
Thermal printing system (32spots/mm) |
|
Recording paper |
80mm(W) x 20m (L) |
|
Sensitivity choice |
5,10,20,40mm/mV, Auto |
|
Wave Output |
